Residential ESS

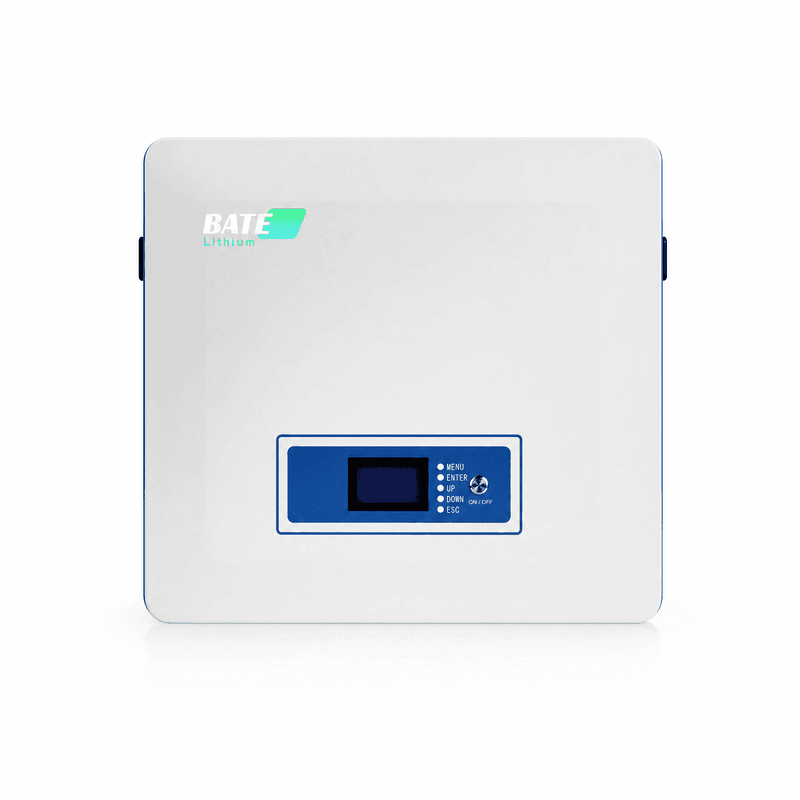

LiFePO4 25.6V Wall Mounted Battery Series
Wall-mounted 25.6V LiFePO4 battery (100Ah~314Ah), space-saving design, intelligent BMS, compatible with multiple inverters. 7-year warranty. 8000 cycles.
Reference price: $899.00Pre-order
Stock: confirmed by orderFor households, installers, dealers, hotels, villas, and factories.
Battery, inverter, PV panel, and accessory availability is confirmed within 24 hours by city, quantity, and project configuration.
Warranty 7 years
Worldwide shipping
100% Authentic
Key Features
- Space-saving wall-mount design
- Smart BMS with full protection
- Compatible with multiple inverters (PYLON, DEYE, GROWATT...)
- Flexible RS485/RS232/CAN communication
- Attractive appearance, easy installation
Technical Specifications
| 100Ah | 200Ah | 314Ah | |
|---|---|---|---|
| Capacity | 100Ah / 2560Wh | 200Ah / 5120Wh | 314Ah / 8038Wh |
| Charge/discharge current | 10A ~ 100A | 20A ~ 200A | 30A ~ 200A |
| Dimensions | 360×230×410 mm | 360×230×460 mm | 360×230×510 mm |
| Weight | 29 kg | 47 kg | 67 kg |
| Warranty | 7 years | 7 years | 7 years |
| Charge cycles | 8000 cycles | 8000 cycles | 8000 cycles |
| Voltage | 25.6V | 25.6V | 25.6V |
| Battery type | LiFePO4 | LiFePO4 | LiFePO4 |
| Maximum charge voltage | 29.2V | 29.2V | 29.2V |
| Minimum discharge voltage | 20V | 20V | 20V |
| Operating temperature | -20°C ~ 60°C | -20°C ~ 60°C | -20°C ~ 60°C |
| BMS | Charge/Discharge/Short circuit/Temperature/Balancing | Charge/Discharge/Short circuit/Temperature/Balancing | Charge/Discharge/Short circuit/Temperature/Balancing |
| Communication | RS485, RS232, CAN | RS485, RS232, CAN | RS485, RS232, CAN |
| Inverter compatibility | PYLON, DEYE, GROWATT, GOODWE, SOLARFAM, SOLAX, LUXPOWER, MUST, MEGAREVO, SRNE | PYLON, DEYE, GROWATT, GOODWE, SOLARFAM, SOLAX, LUXPOWER, MUST, MEGAREVO, SRNE | PYLON, DEYE, GROWATT, GOODWE, SOLARFAM, SOLAX, LUXPOWER, MUST, MEGAREVO, SRNE |
| Certifications | CE, RoHS | CE, RoHS | CE, RoHS |
FAQ
What is the warranty for LiFePO4 25.6V Wall Mounted Battery Series?▼
LiFePO4 25.6V Wall Mounted Battery Series comes with a 7 years warranty from Batelithium. We provide full technical support throughout the warranty period.
Do you ship internationally?▼
Batelithium ships worldwide. Free shipping for bulk orders. Contact our team for a custom quote.
